.:The product has an open package, is in good condition Full-Pack and has a few marks on the device.
Covered by 12 months full factory warranty:.

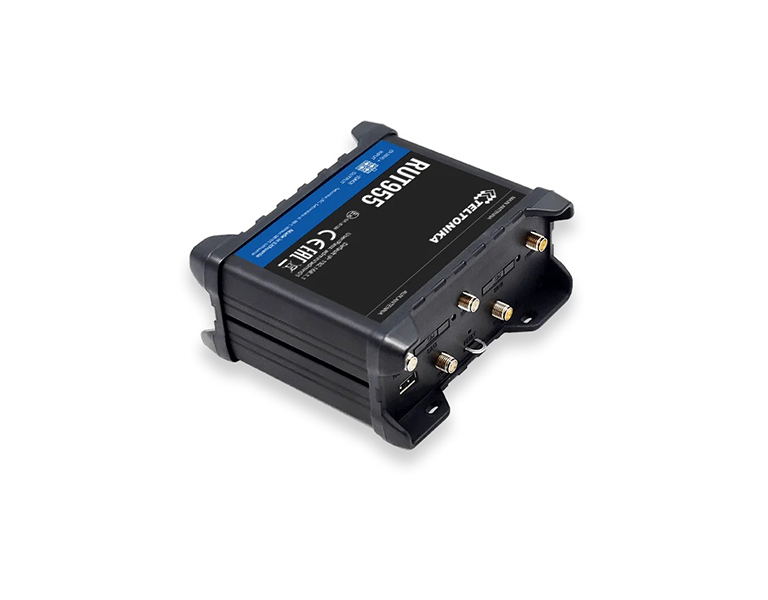

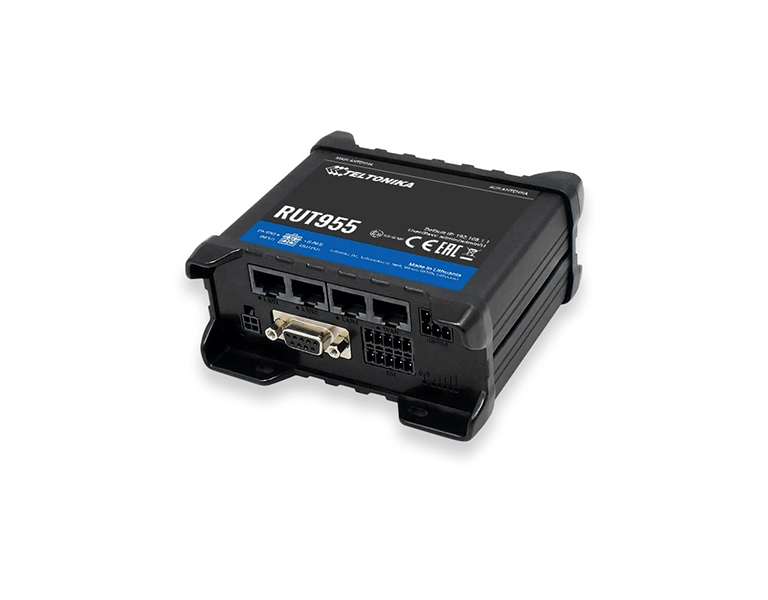

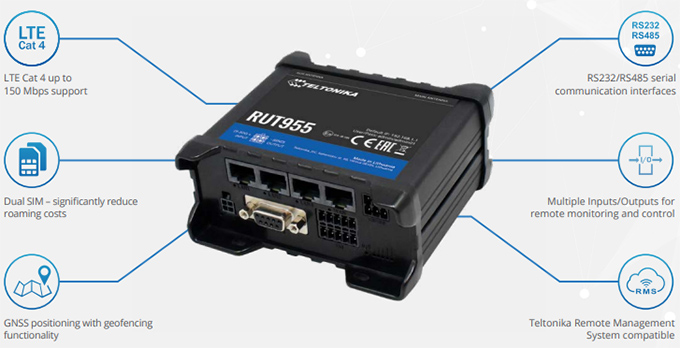

RUT955 is a highly reliable and secure LTE router with I/O, GNSS and RS232/RS485 for professional applications. Router delivers high performance, mission-critical cellular communication and GPS location capabilities. RUT955 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
| Specifications | |
| Hardware | |
| Mobile | 4G (LTE) – Cat 4 DL up to 150 Mbps, UL up to 50 Mbps; DC-HSPA+; UMTS; TD-SCDMA; EDGE; GPRS |
| CPU | Atheros Wasp, MIPS 74Kc, 550 MHz |
| Memory | 16 MBytes Flash, 128 MBytes DDR2 RAM |
| Ethernet | 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN ports |
| Power supply | 9 – 30 VDC, 4 pin DC connector |
| Inputs | 3 x Inputs (Digital, Digital galvanically isolated, Analog) + 1 Digital Input on power connector |
| Outputs | 2 x Outputs (30 V, 250 mA digital open collector output / 24 V, 4 A SPST relay output) + 1 Digital O.C. Output on power connector |
| Connectors | 1 x 4 pin DC, 4 x Ethernet, 2 x Mobile SMA, 2 x WiFi RP-SMA, 1 x GPS SMA, 1 x RS232, 1 x 6 pin RS485, 1 x 10 pin I/O, USB 2.0 |
| Memory Card | microSD, Hinge Type slot |
| SIM | 2 x external SIM holders |
| Status LEDs | 1 x bi-color connection status, 5 x connection strength, 4 x LAN status, 1x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing, plastic panels |
| Dimensions | 100 mm x 110 mm x 50 mm |
| Weight | 287 g |
| Software | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP |
| Networking features | NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Unique networking features | VLAN, Load balancing, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover |
| Connection monitoring | Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection |
| Authetication | Pre-shared key, digital certificates, X.509 certificates |
| Keep settings | Update FW without losing current configuration |
| Monitoring & Management | WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
