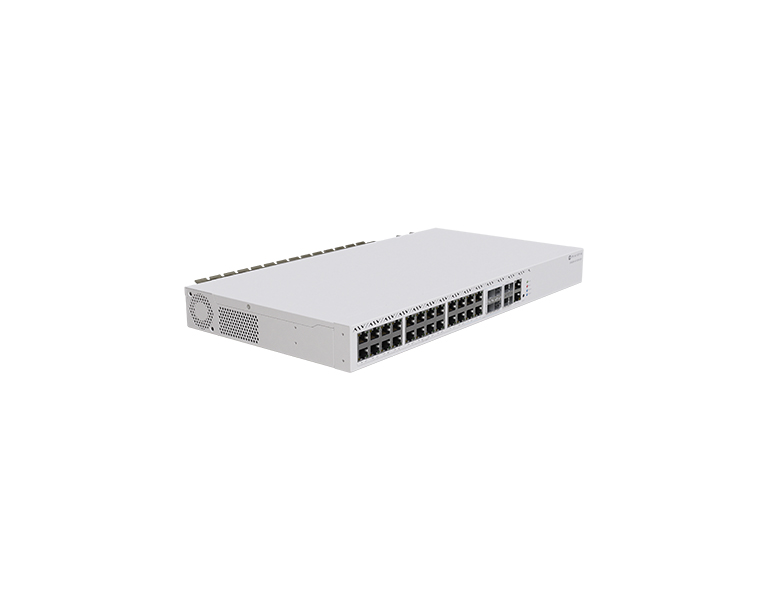

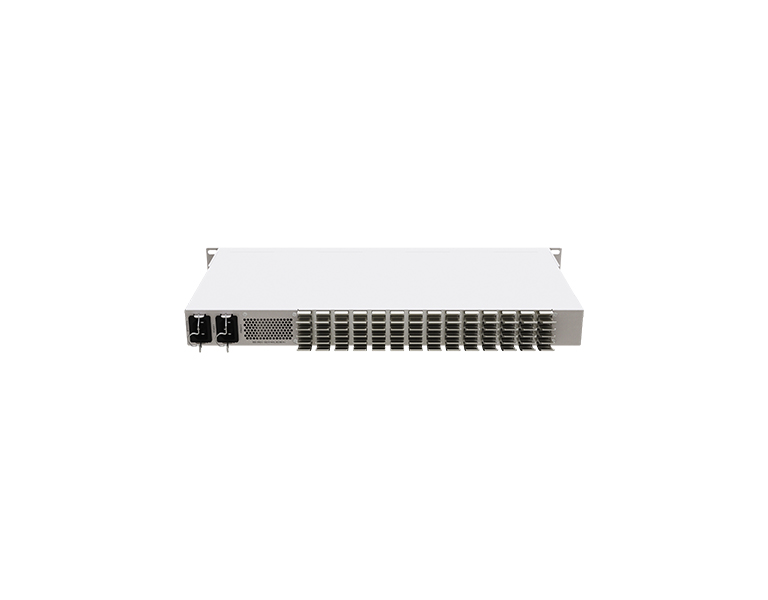

Mikrotik CRS326-4C+20G+2Q+RM 650MHz, 24XSFP+, 2XQSFP+, RouterOS/SwOS L5
Product Code:
CRS326-4C+20G+2Q+RM
Description
Characteristics
Downloads
Description
There are 20x 2.5 Gigabit Ethernet ports, 4x COMBO ports that can either be used as 4x additional 2.5 Gigabit Ethernet ports OR as 10G SFP+ interfaces, and on top of all that – there are 2x 40 Gigabit QSFP+ cages for ultra-fast fiber connectivity. Practical and future-proof!
The mighty Marvell Prestera switch-chip that comes with a dedicated CPU can handle all your daily tasks without breaking a sweat. VLAN’s, Jumbo frames, link aggregation, ACL rules… You can even do some Layer3 routing!
Dual-redundant power supplies and an extra 100 Mbps Ethernet port for management purposes will save you a lot of troubles in the long run. And we’ve included everything you need to secure this marvelous switch in a standard 19” rackmount!
Characteristics
| Specifications | |
| Product code | CRS326-4C+20G+2Q+M |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip mode | 98DX8332 |

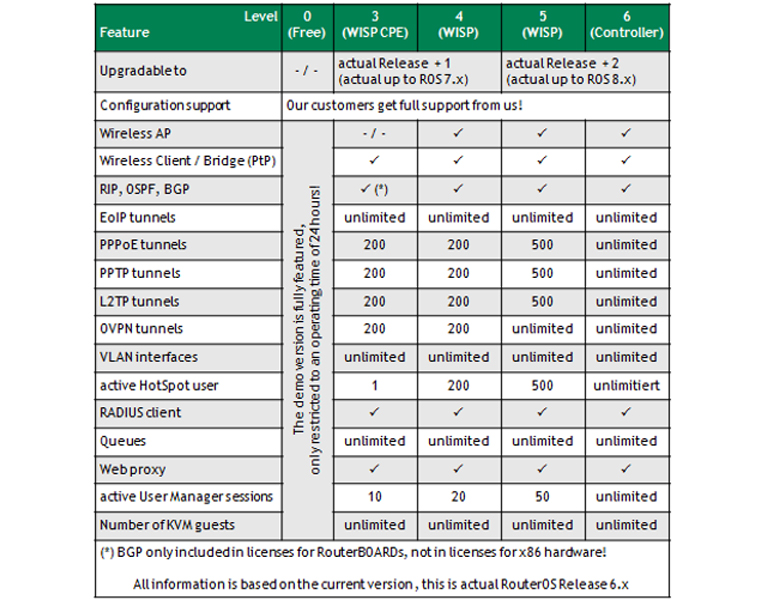

| License level | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Frequency (Hz) | 47-63 |
| Max power consumption | 70 W |
| Max power consumption without attachments | 51 W |
| Cooling type | 2 fans |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Number of 2.5G Ethernet ports | 20 |
| Number of Combo 10G Ethernet/ SFP+ ports | 4* (2.5G ETH/10G SFP+) |
| Fiber | |
| Number of 40G QSFP+ ports | 2 |
| Peripherals | |
| Serial port | RJ45 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
| IP | 20 |
