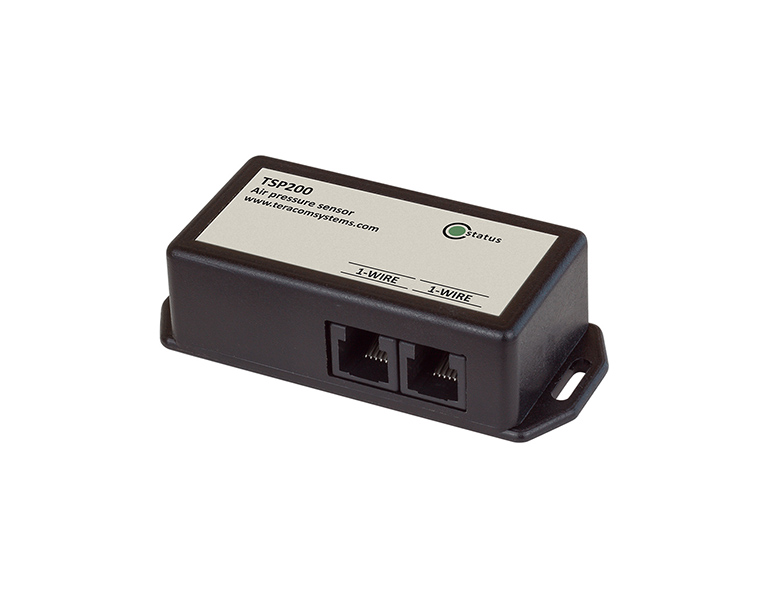

Teracom TSP200 - 1-Wire barometric pressure sensor
TSP200 is a barometric pressure sensor with 1-Wire interface. Its basic silicon MEMS element is based on proven piezo-resistive pressure sensor technology featuring high EMC robustness, high accuracy and linearity and long term stability. A mixed-signal application-specific integrated circuit (ASIC) performs A/D conversions and provides the conversion results. The temperature measured by the internal temperature sensor is used for sensor specific compensation, using preset parameters.
The absolute barometric pressure sensor is a nano power and wide temperature range working device. This is essential, when focusing on low-power environmental monitoring applications.
TSP200 communicates over a 1-Wire bus. Each sensor has a unique 64-bit serial code. The 1-Wire absolute barometric pressure sensor utilizes two RJ11 connectors for easy daisy chain sensors wiring.
Features:
• Easy installation
• Excellent long term stability
• Unique 64-Bit serial number for multi sensors support
• High EMC immunity
• High linearity and accuracy
• Relative accuracy as low as 0.12hPa
Applications:
• Green houses and plants weather stations
• Lab and product process monitoring
• Altitude chambers
• Tunnel ventilation system
The sensor can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
| Specifications | |
| Pressure range | 300 to 1100 hPa |
| Relative accuracy (950 to 1050hPa @25°C) | ± 0.12 hPa |
| Absolute accuracy (950 to 1050hPa @25°C) | ± 1 hPa |
| Resolution | 0.1 hPa |
| Temperature range | -20 to 70°C |
| Dimensions | 85 x 35.1 x 23.5 mm |
| Max current consumption | 2 mA |
| Supply voltage (+VDD) | 4 to 5.5 VDC |
| Interface | 1-wire |
| Connectors | Two RJ-11 in parallel |
