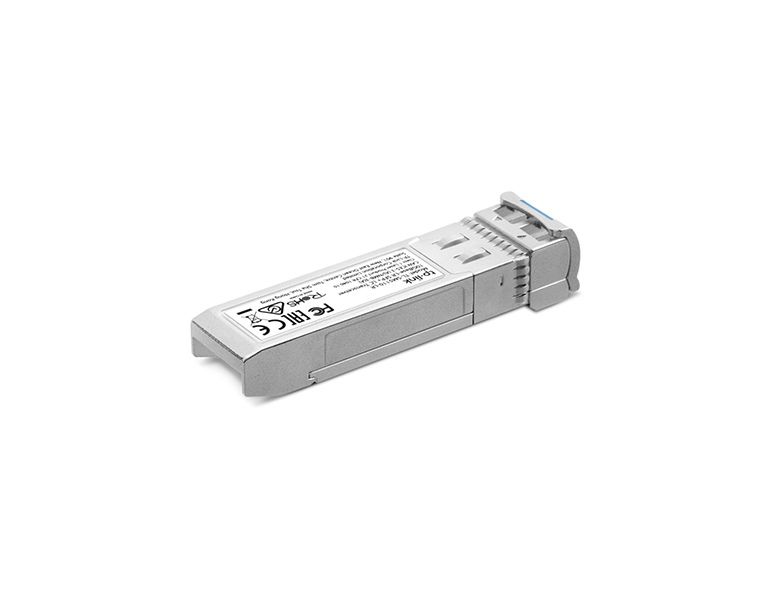

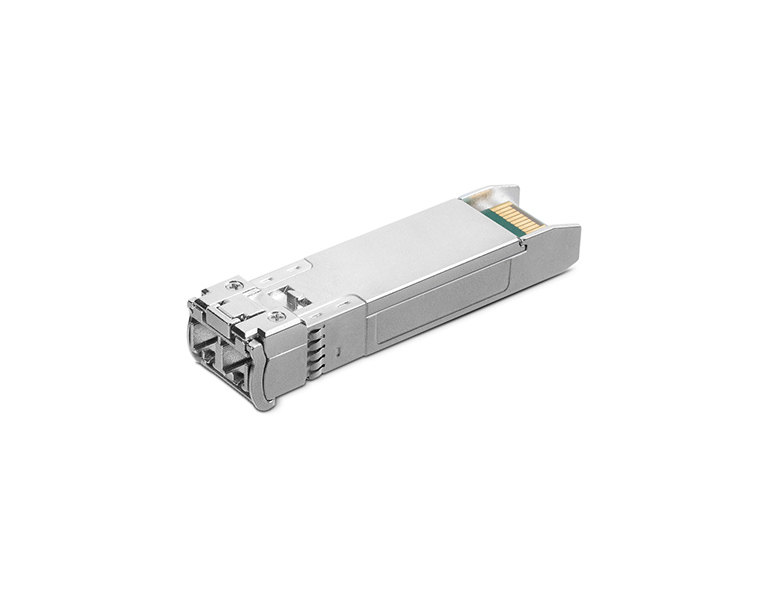

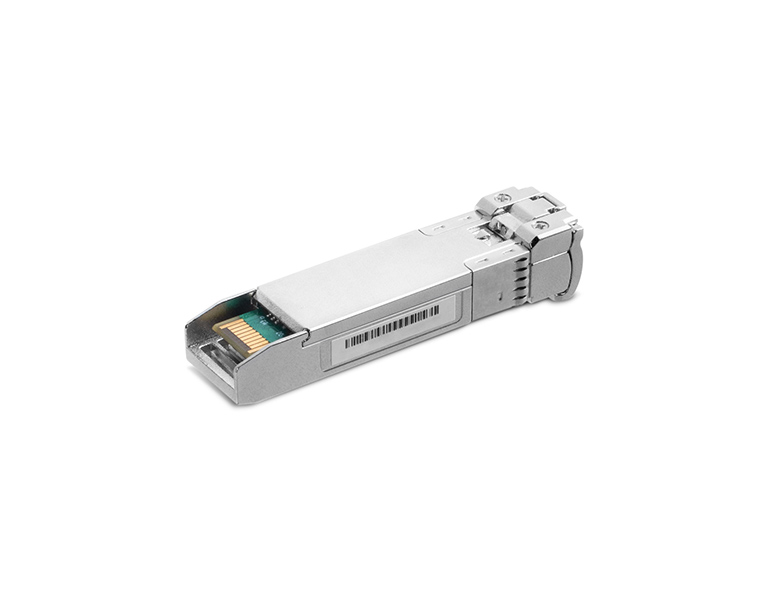

TP-LINK TL-SM5110-LR V1.3 10GBase-LR SFP+ LC Transceiver
Κωδικός προϊόντος:
TL-SM5110-LR
40,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
32,26 €
Άμεσα διαθέσιμο
TP-LINK TL-SM5110-LR V1.3 10GBase-LR SFP+ LC Transceiver
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
| • Single-mode SFP+ LC Transceiver • Hot-Pluggable with maximum flexibility • Supports Digital Diagnostic Monitoring (DDM) • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) • Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
What This Product Does
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Χαρακτηριστικά
| PACKAGE CONTENTS | |
| Package Contents | • SM5110-LR • Installation Guide |
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Media converter & Module | |
| Dimensions (W*D*H) | 56.7x13.9x10.35 mm |
| Transceiver | |
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps |
| Port Type | LC Duplex |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0–70 °C Storage Temperature: -40–85 °C Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
