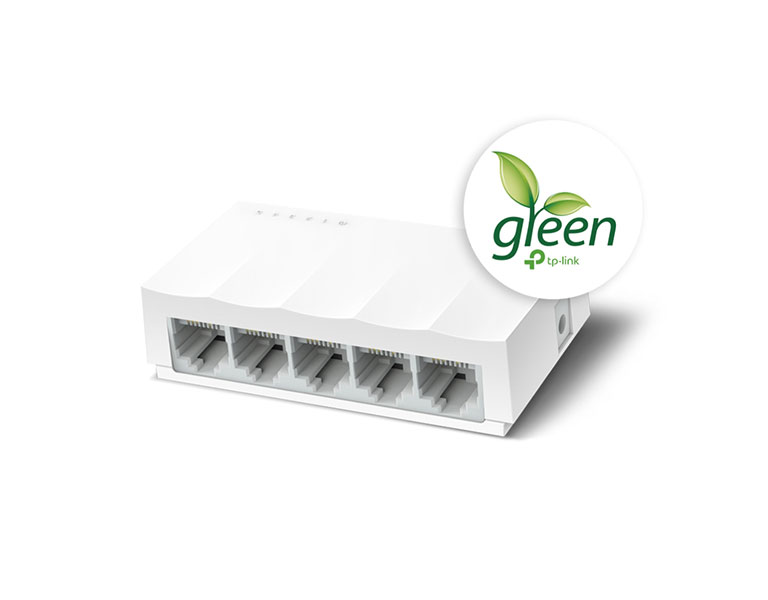

TP-LINK LS1005 V1 5-Port 10/100Mbps Desktop Switch
| • 5x 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX • Green Ethernet technology saves power consumption • IEEE 802.3X flow control provides reliable data transfer • Plastic casing and desktop design • Plug and play, no configuration required • Fanless design ensures quiet operation |
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Plug and Play
1) Connect to Power
2) Connect the devices
3) Enjoy
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
| SPECIFICATIONS | |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Forwarding Mode | Store and forward |
| Interface | 5 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Shell material | Plastic |
| Connector type | Plastic |
| Switching Capacity | 1.0Gbps |
| MAC Address Table | 2K |
| Packet Forwarding Rate | 0.7Mpps |
| Jumbo Frame | 2KB |
| Advanced Features | Green Technology; 802.3x Flow Control |
| Max Power Consumption | 1.65W |
| Max Heat Dissipation | 5.627Btu/hr |
| LEDs | Power, Link/Act (indicator per port built into RJ45 port) |
| Power Supply (External Adapter) | 5V/0.6A |
| Dimensions(WxDxH) | 83.6 x 45.7 x 22.8 mm |
| Wall-Mounting | No |
| Certification | CE, RoHS |
| Package Contents | 5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~95% non-condensing |
