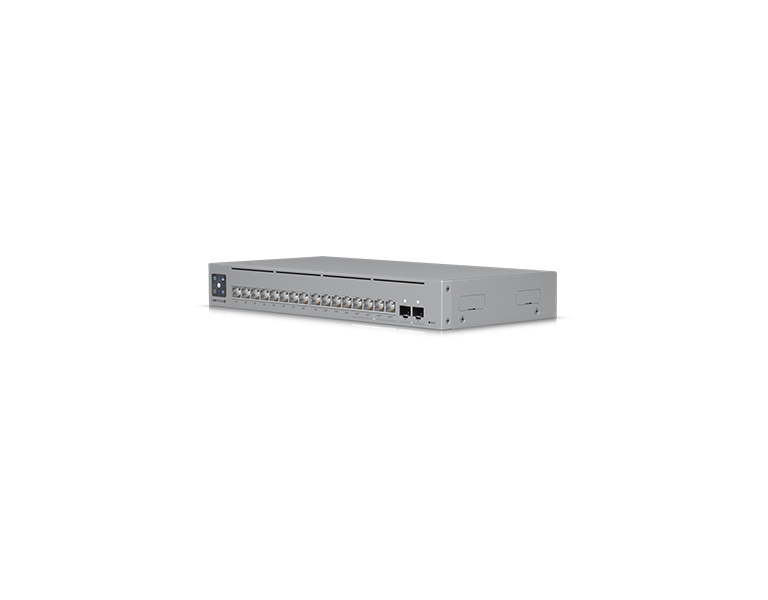

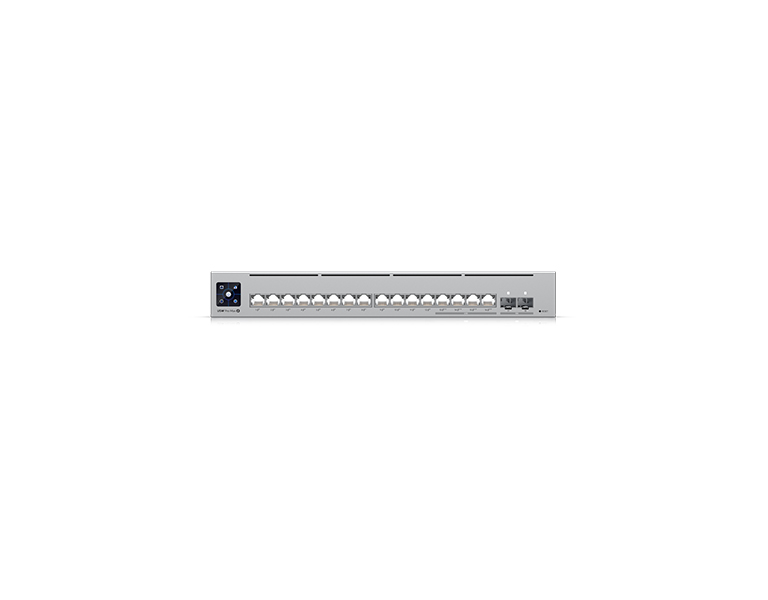

Ubiquiti USW-PRO-MAX-16-POE, a 16-port, L3 Etherlighting Switch with 2.5 GbE, POE++ output
Κωδικός προϊόντος:
USW-PRO-MAX-16-POE
530,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
427,42 €
Άμεσα διαθέσιμο
Ubiquiti USW-PRO-MAX-16-POE, a 16-port, L3 Etherlighting Switch with 2.5 GBE, POE++ output
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

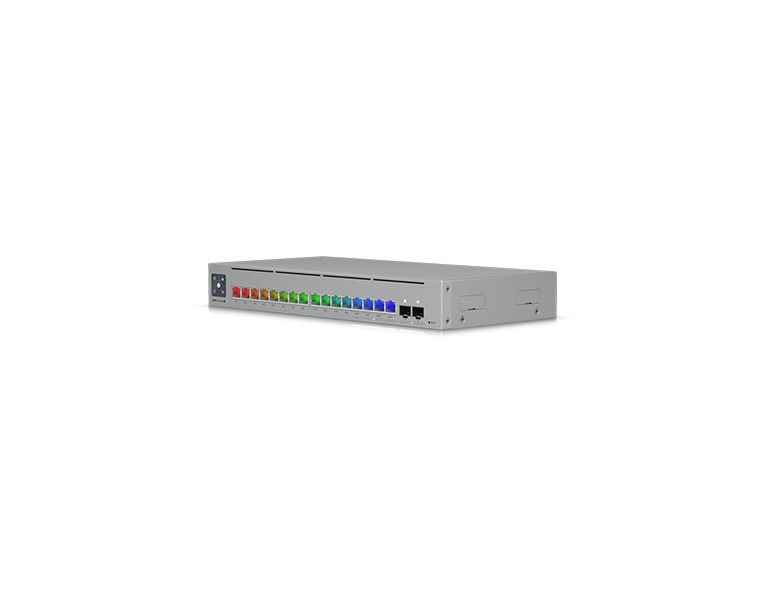

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (4) 2.5 GbE PoE++ ports
• (12) GbE+ ports
• (2) 10G SFP+ ports
• 180W total PoE availability
• Versatile desktop, wall, and rack** mounting
• Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

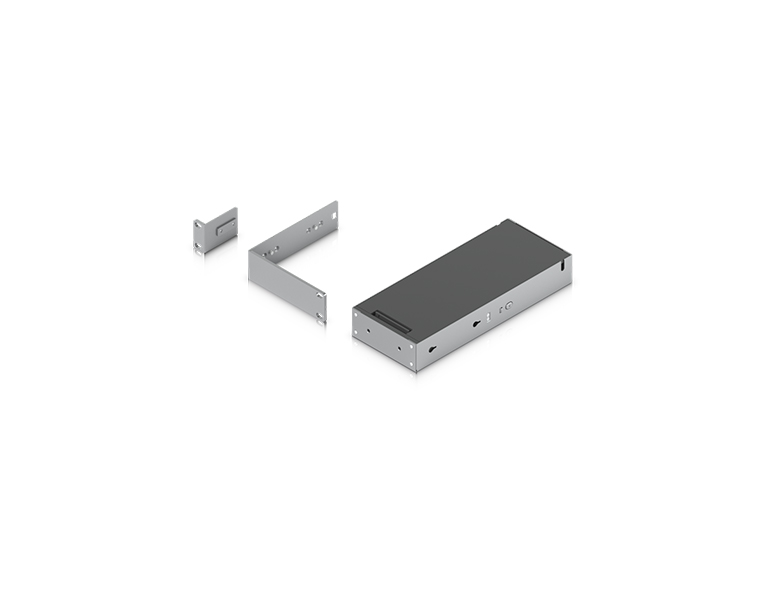

**Requires add-on Rack Mount accessory.
Χαρακτηριστικά
| Specifications | |
| Dimensions | 325.1 x 160 x 43.7 mm |
| Weight | 2.1 kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE interface | (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 42 Gbps |
| Switching capacity | 84 Gbps |
| Forwarding rate | 62.496 Mpps |
| Power method | DC adapter |
| Power supply | 54V, 210W |
| Max. power consumption | 30W (Excluding PoE output) |
| Total available PoE | 180W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44-57V PoE+: 50-57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| Application Requirements | |
| UniFi Network | Version 8.1.127 and later |
Λήψεις
