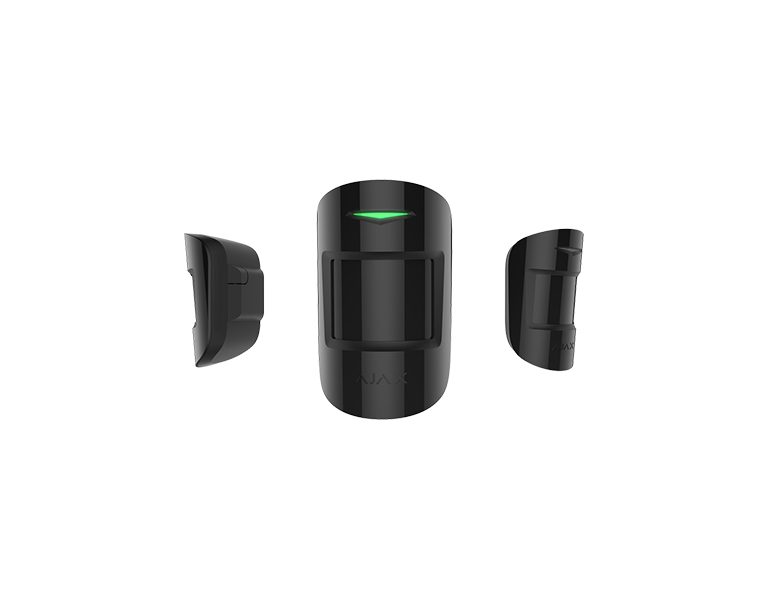

AJAX SYSTEMS AJ-MP-B - MOTION PROTECT BLACK
| • Up to 12 m detection distance • Pet immunity • False alarms prevention algorithm • Remote control and setup via the app • 88.5°/80° viewing angles • Temperature compensation • Effortless installation and replacement • Connecting via QR code |
False alarm prevention
MotionProtect Jeweller combines special optics and software to filter false alarms. When professionally installed, the detector ignores pets and doesn’t react to the most common sources of false alarms.
Optics
The detector lens increases sensitivity to human motion, cutting off false alarms to other sources of IR radiation. It is designed so that potential IR radiation from pets and other interferences affect only the small lens sections. Large sections, on the contrary, are aimed at the most likely places of burglar motion.
Software
For additional protection against false alarms, the detector uses the SmartDetect algorithm. The armed detector constantly analyses the thermal diagram from the PIR sensor: the intensity of IR radiation, the size of the thermal spots, the speed of movement and other parameters.
Installation

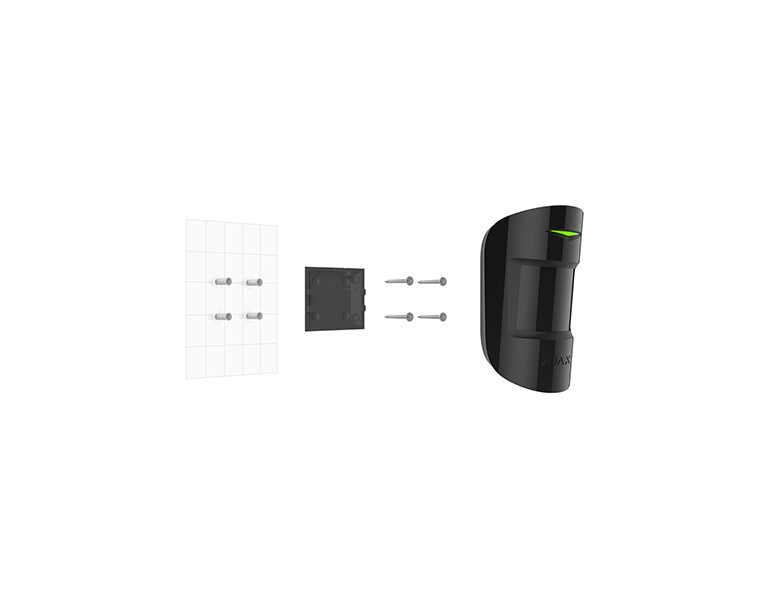

When properly installed and configured, the detector does not react to common sources of false alarms and pets under 50 cm tall and 20 kg in weight. For seamless installation, it has pre-installed batteries and the SmartBracket mounting panel. So, installers don’t need to disassemble the detector and won’t damage the electronics during installation.
| Technical Specifications | |
| Classification | Electro-optical radio channel security detector |
| Type of detector | Wireless |
| Installation method | Indoors |
| Compatibility | Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge |
| Sensing element | PIR sensor |
| Alarm signal delivery time | 0.15 s |
| Motion detection distance | Up to 12 m |
| Detection angles | Horizontal — 88.5° Vertical — 80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 m |
| Pet immunity | Weight — up to 20 kg Height — up to 50 cm |
| Power supply | Battery: CR123A battery, 3 V |
| Battery life | Up to 5 years |
| Jeweller radio technology | • Communication range with central unit — up to 1,700 m in an open space • Two-way communication between devices • Self-adjusting RF output power — up to 20 mW • Block encryption based on AES algorithm • Detector polling period — 12−300 s |
| Temperature sensor | Available |
| Operating temperature range | From -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Remote setting and testing | Yes |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 86 g |
| Package contents | MotionProtect motion detector SmartBracket mounting panel CR123A battery (pre-installed) Installation set User's guide |
