E-zy EZ-NM2NF-400-1 N Male to N Female Jumper cable, 400 type, 1
Κωδικός προϊόντος:
EZ-NM2NF-400-1
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

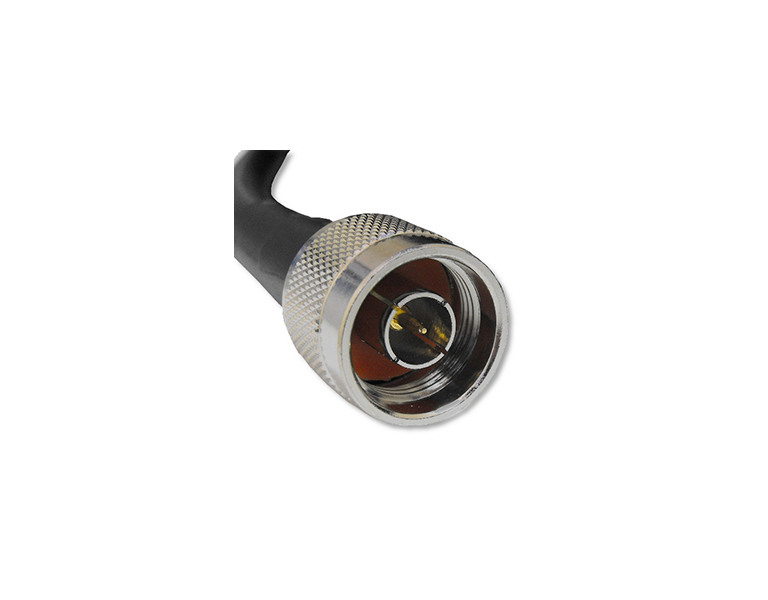

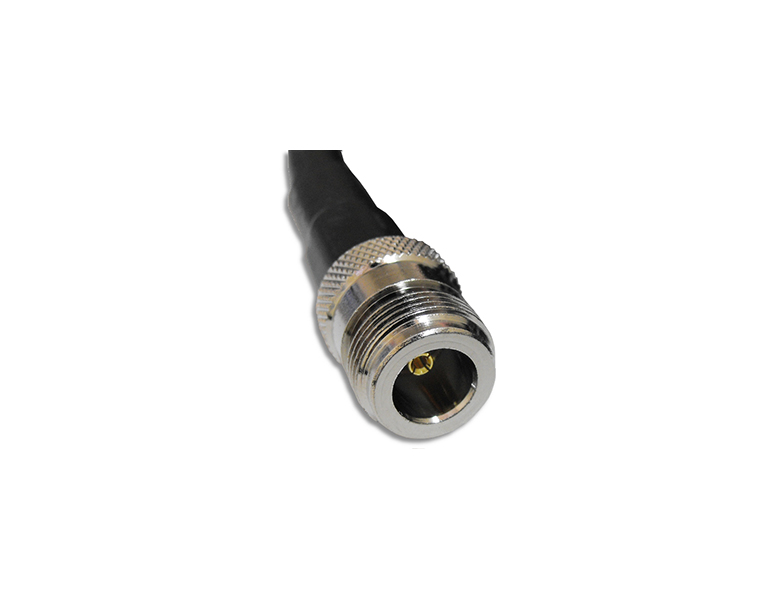

N Male to N Female Jumper cable, 400 type, 1 meter.

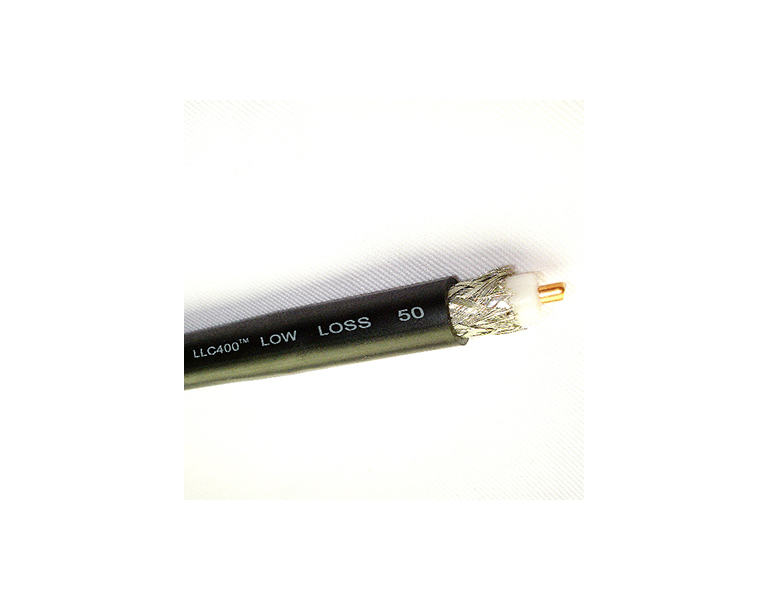

EN-400 made coaxial jumper cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations used in wireless communications.
It is constructed with a UV resistant polyethylene jacket for outdoor use.
This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors. Enhanced for usage from 2GHz up to 6GHz.
Χαρακτηριστικά
| Specifications | |
| Cable | |
| Cutoff Frequency | 16.2 GHz |
| Velocity of Propagation | 85% |
| Impedance | 50 ohm |
| Capacitance | 23.9 pF/ft (78.4 pF/m) |
| DC Resistance Inner Conductor | 1.39 ohms/1000ft (10.5 ohms/km) |
| DC Resistance Outer Conductor | 1.65 ohms/1000ft (12.8 ohms/km) |
| Peak Power | 16 kW |
| Jack Spark | 8000 Volts RMS |
| Inner Conductor | Solid Bare Copper (BC)/Aluminum |
| Dielectric Foam | Foam Polyethylene (7.24 mm) |
| Outer Conductor | Aluminum Tape 0.291 in (7.39 mm) |
| Braid | 34AWG Tinned Copper, 90%(8.13 mm) |
| Jacket | Black PVC/PE (10.30 mm ±0.2 mm) |
| Connectors | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | <2,5 dB |
| Insulation Resistance | 5,000 Megohms min |
| Connector Body | Nickel Plated |
| Center Pin | Gold Plated |
| Dielectric | Teflon |
| O-Ring | Not Present |
